We conduct thorough inspections at every stage of the production process.
Steel Craft Alloys is a leading manufacturer, supplier, stockist, and exporter of high-quality Plate Flanges, supplying to international markets with a qualitatively focused approach. As a certified company following ISO 9001:2015, we have expertise in making flanges as well as piping parts adhering to international standards of ASME/ANSI B16.5 as well as ASTM standards.

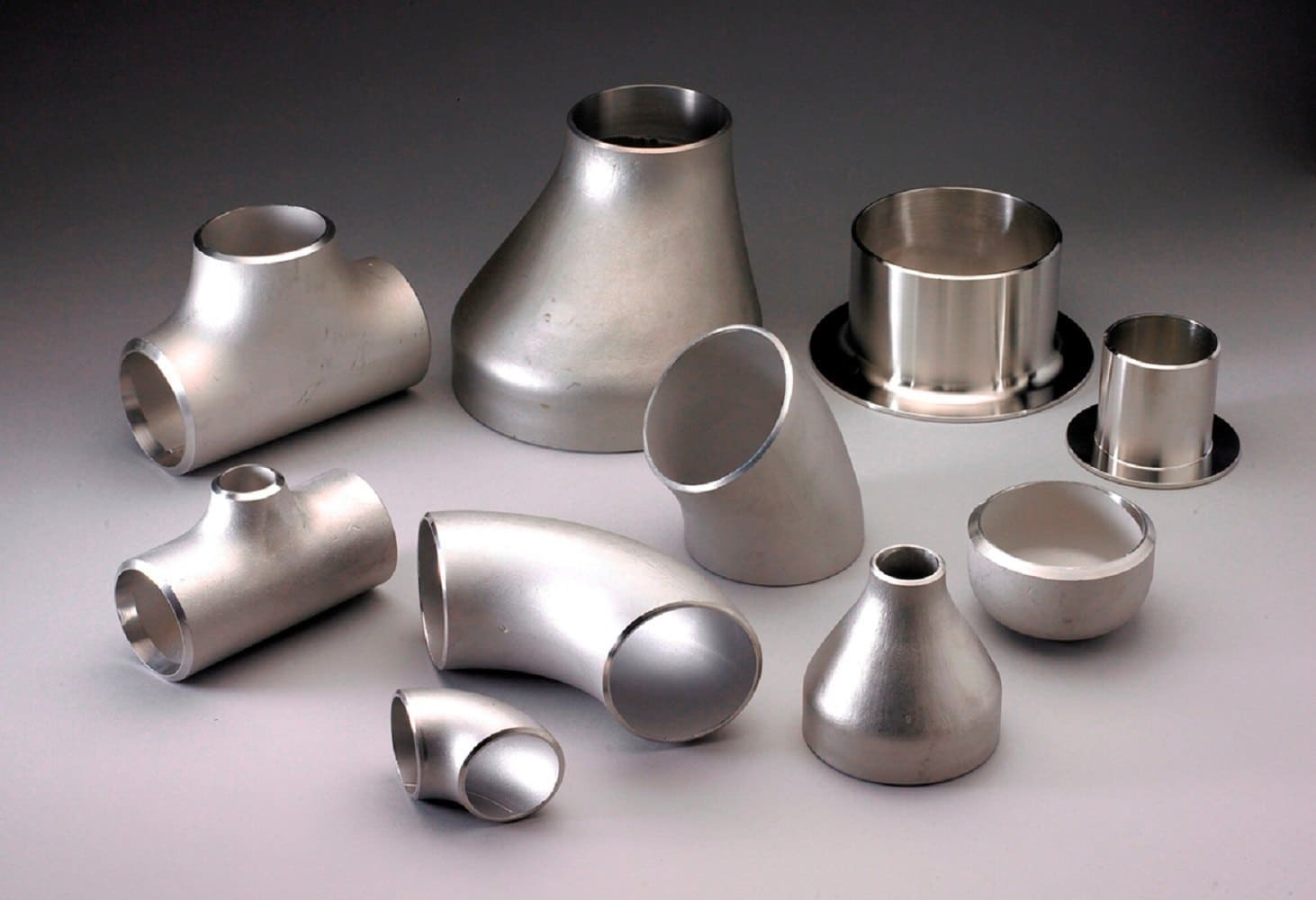

Our Plate Flanges find vast applications where quick assembly as well as disassembly of piping arrangements are necessary, and are manufactured using top-grade materials like carbon steel, stainless steel, as well as alloy steel. We are also a well-known exporter of a vast array of buttweld fittings, such as Long Radius Elbows, Short Radius Elbows, as well as Custom Radius Elbows produced to standards like A234 WPB, A420 WPL6, A403 WP304L, WP316L, and more.
Elbows are supplied in 90°, 45°, as well as 180° angles, as well as radius types of 1D to 10D, in forms of seamless, welded, as well as large-diameter fabricated ones respectively. Steel Craft Alloys makes sure every item comes along with complete certification as well as quality warranty, catering to various industries of the USA, UAE, Germany, Brazil, Saudi Arabia, South Africa, as well as more.
Products are packaged to ensure that there is no damage during transit. In case of exports, standard export packaging is done in wooden cases. All flanges are marked with Grade, Lot No, Size, Degree and our trade mark. On special requests we can also, make custom marking on our products.
At Steel Craft Alloys , all fittings and flanges are subject to strict inspection at each stage of the production process, from starting material purchasing to product dispatch. They are visually examined for conformity to ASTM, ASME, MSS, DIN, EN, and JIS codes and standards. Upon request, official certified Inspection Agencies can be called in to witness the material reports, dimensions and quality conformity of products.
Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report
| Outside Diameter: | Seamless Elbow ( 1/2″～24″), Welded / Fabricated Elbow (1/2″～48″) |
|---|---|
| Wall Thickness: | 3mm – 40mm / SCH3, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Bending Radius: | R=1D – 10D, 15D, 20D |
| Product’s Angle: | 5° – 180° Elbows, 90° and 45° Long Radius Elbows, Long Radius Returns, Short Radius Elbows and Returns |
| Value Added Services: | Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering |
| Production Grades: | Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel |
| ASME | ANSI B16.9, ANSI B16.28, MSS-SP-43 |
|---|---|
| DIN | DIN2605, DIN2615, DIN2616, DIN2617, DIN28011 |
| EN | EN10253-1, EN10253-2 |
| Stainless Steel Elbow | ASTM A403 WP Gr. 202, 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L |
|---|---|
| Carbon Steel Elbow | ASTM A 234 WPB, WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70. |
| Low Temperature Carbon Steel Elbow | ASTM A420 WPL3, A420 WPL6 |
| Alloy Steel Elbow | ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91 |
| Duplex Steel Elbow | ASTM A 815, ASME SA 815 UNS NO S31803, S32205. Werkstoff No. 1.4462 |
| Nickel Alloy Elbow | ASTM / ASME SB 336 UNS 2200 (NICKEL 200), UNS 2201 (NICKEL 201), UNS 4400 (MONEL 400), UNS 8020 (ALLOY 20 / 20 CB 3), UNS 8825 (INCONEL 825), UNS 6600 (INCONEL 600), UNS 6601 (INCONEL 601), UNS 6625 (INCONEL 625), UNS 10276 (HASTELLOY C 276) |
