We conduct thorough inspections at every stage of the production process.

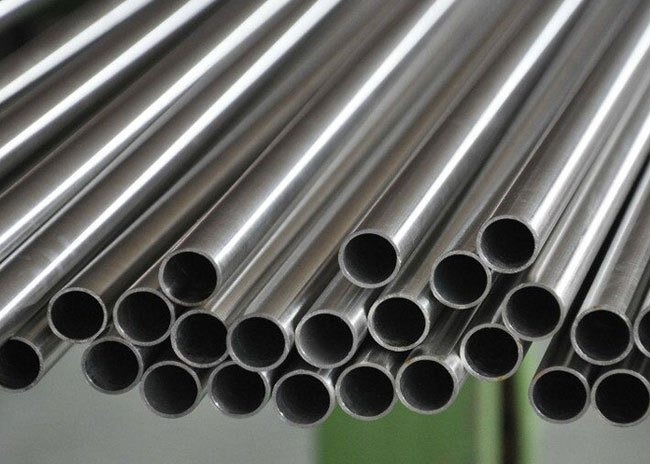

Steel Craft Alloys has established itself as a leading Monel Pipe Manufacturer in India, recognized for its unwavering commitment to quality, innovation, and customer satisfaction. With a strong presence in the competitive industrial market, Steel Craft Alloys continues to set benchmarks in Monel pipe production.
Backed by a state-of-the-art manufacturing facility and a team of experienced professionals, we utilize advanced technology and precision engineering to produce high-performance Monel pipes. Our strict adherence to international quality standards ensures that every pipe delivers exceptional durability, corrosion resistance, and reliable performance, even in the most demanding industrial environments.
| Pipe Specifications | ASTM A312, A358 / ASME SA312, SA358 |
|---|---|
| Tube Specifications | ASTM A213, A269, A249, A511, A554 / ASME SA213, SA269, SA249, SA511, SA554 |
| Dimensions | ANSI/ASME B36.19M, ANSI/ASME B36.10M |
| Seamless Pipe & Tube Size | 1/2″ NB – 16″ NB |
| Welded Pipe & Tube Size | 1/8″NB TO 30″NB IN |
| EFW Pipe & Tube Size | 6″ NB – 24″ NB |
| Tube Outside Diameter | 6.00 mm OD up to 914.4 mm OD, Sizes up to 24” NB available Ex-stock, OD Size Steel Tubes available Ex-stock |
| Thickness | 0.35 mm – 50 mm |
| Specialized in | Large Diameter Pipe Size |
| Schedule | SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, SCH 80S, SCH60, SCH80, SCH120, SCH140, SCH160, SCH XXS, SCH XS |
| Type | Seamless Pipes, ERW Pipes, Welded Pipe, Fabricated Pipes, Electro polished Pipe, Polished Pipe, Hollow Pipes |
| Form | Round, Square, Hydraulic, U Shape, Rectangular, Pan Cake Coils, Coiled, Hex, Honed, Etc |
| Length | Single Random, Double Random & Required Length. |
| End | Plain End, Beveled End, Treaded End |

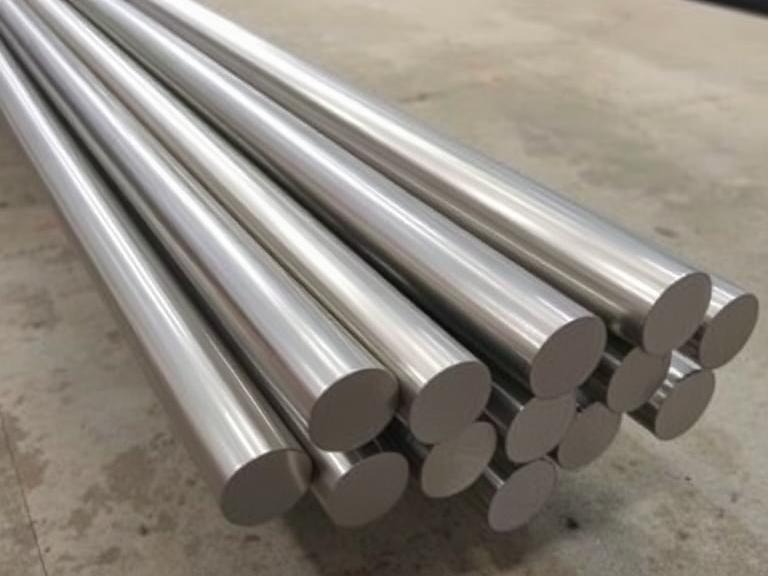

Steel Craft Alloys stands out as a prominent Monel Bar manufacturer in India, dedicated to serving diverse industrial requirements with precision and expertise. Recognized for our unwavering commitment to quality, we have firmly positioned ourselves among the top Monel Bar manufacturers in the country.
Monel is a trademarked group of nickel-based alloys, primarily composed of over 60% nickel and copper, with trace elements of iron, manganese, carbon, and silicon. Owing to their exceptional corrosion resistance and mechanical strength, Monel bars are widely utilized across industries that operate in harsh and corrosive environments.
We offer Monel bars in a variety of specifications, tailored to specific applications. Commonly used grades include:
| Specifications | ASTM B166, B446, B637, ASME SB166, SB446, SB637 |
|---|---|
| Dimension Standard | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Bar Diameter | 3 ~ 800mm |
| Hex Bar size | 2-100mm A/F |
| Flat bar size | Thickness: 2 -100mm. Width: 10 to 500mm. |
| Square bar size | 4 to 100mm |
| Rectangular Bars | Size: 33 x 30mm to 295 x 1066mm. Thickness: 3.0 to 12.0mm. |
| Hollow Bars | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Billet Size | 1/2 to 495mm Diameter |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients requirements |
| Bar Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Rolled Bars Condition | Hardened & tempered, annealed |
| Cold Rolled Bar Technique | Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Form | Round, Rod, T-Bar, Channel Bar, Precision Ground Bar, Flat Bar, Square, Blocks, Round Rod, Rings, Hollow, Triangle, Rectangle, Hex (A/F), Threaded, Half Round Bar, Profiles, Billet, Ingot, I/H Bar, Forging etc. |

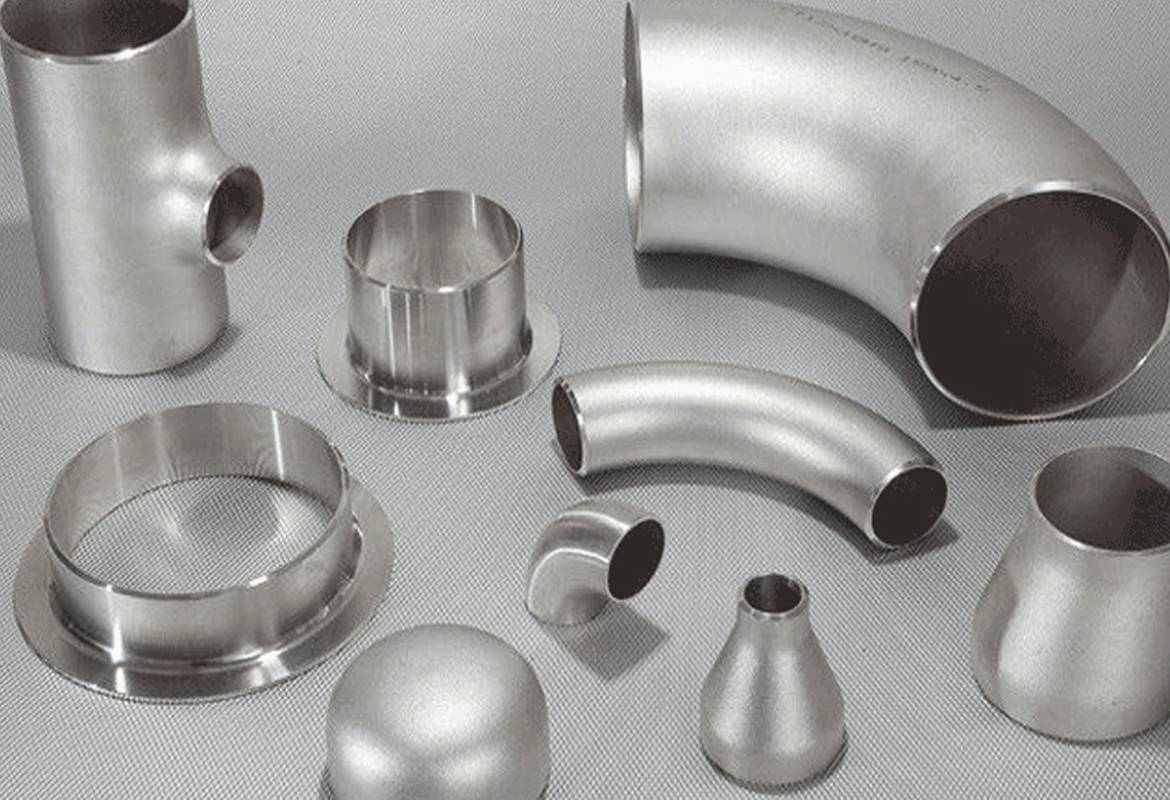

Steel Craft Alloys is a premier manufacturer at the forefront of producing top-quality Monel Pipe Fittings. With a steadfast commitment to excellence, we have established ourselves as leaders in the industry, delivering unparalleled products that meet the highest standards of quality and reliability.
Monel is a nickel-copper alloy known for its exceptional corrosion resistance and high strength in extreme conditions. Developed over a century ago, Monel has proven its mettle in a myriad of challenging environments, making it a sought-after material across various industries.
We offer a range of Monel grades to cater to diverse industrial needs. Among the commonly used grades are Monel 400 and Monel K500. Monel 400, with its excellent resistance to corrosion by many reducing media, is ideal for marine and chemical processing applications. Monel K500, on the other hand, is recognized for its unique combination of corrosion resistance and high tensile strength, making it suitable for applications in harsh environments.
| Specifications | ASTM B366 / ASME SB366 |
|---|---|
| Dimensions | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10 |
| Size | Seamless Butt Weld Fittings: 1/2" - 10" Welded Butt Weld Fittings: 1/2" - 48" |
| Thickness | SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75 |
| Size Range | ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) ASTM B366 Monel Buttweld Fitting |
| Type | DN15-DN1200 |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom MSS Sp-43 Monel Pipe Fitting |
| Elbows | Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D. Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO |
| Connection | Welding |
| Manufacturing process | Forge, Cast, Push, Press, etc. |
| Key markets and industries |
|
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Specialized manufacturer of | 90 Deg Elbows, 45 Deg Elbows, Tees, Crosses, Reducers, Pipe Cap, Stub End, Pipe Bend |

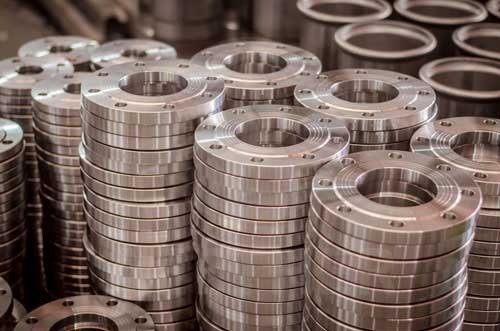

Steel Craft Alloys is a distinguished manufacturer of Monel Flanges, specializing in the production of premium-quality Monel Flanges. With a strong commitment to excellence and a proven track record of delivering superior products, Steel Craft Alloys has established a prominent position in the industry. Central to the company’s operations is a focus on precision engineering and exceptional craftsmanship. Equipped with advanced manufacturing facilities, modern technology, and a team of skilled professionals, Steel Craft Alloys consistently ensures that its Monel Alloy Flanges meet the highest industry standards.
We provide a wide range of Monel Flanges in various grades to meet diverse industrial requirements. Among the most popular are Monel 400 Flanges, prized for their outstanding corrosion resistance and high strength, making them ideal for marine and chemical processing industries. Another favored grade is Monel K500 Flanges, which offer a unique combination of superior corrosion resistance and high tensile strength, making them well-suited for demanding and harsh environments.
| Standard | ASTM B564 / ASME SB564 |
|---|---|
| Dimensions | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
| Size | 1/2" (15 NB) to 48" (1200NB), DN10~DN5000 |
| Pressure Rating | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| Pressure Calculation in DIN | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| JIS | 16 K, 5K, 10 K, 20 K, 30 K, 40 K, 63 K |
| Flange Connection / Flange Face Type | Raised Face (RF), Ring Type Joint (RTJ), Flat Face (FF), Large Male-Female (LMF), Lap-Joint Face (LJF), Small Male-Female (SMF), Small Tongue, Large Tongue & Groove, Groove, Flange Pipe. |
| Types of Flanges | Threaded / Screwed / Forged / Plate |
| Coating | Yellow Transparent, Zinc Plated, Anti-rust Paint, Oil Black Paint, Cold and Hot Dip Galvanized |
| Test Of Flange | Direct-reading Spectrograph, Ultrasonic flaw detector, Magnetic particle detector, X-ray detector, Hydrostatic testing machine. |
| Production Technique Used | Heat treated, Forged and Machined |
| Equipment | Press machine, Bending machine, Pushing Machine, Sand-blasting machine, electric bevelling machine etc. |
| Test Certificates | EN 10204/3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report, etc |

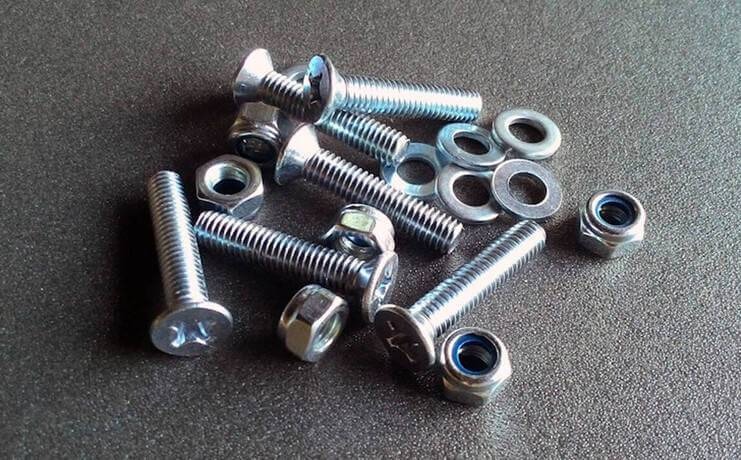

Steel Craft Alloys is a leading manufacturer, supplier, and exporter of Monel fasteners, proudly offering a wide range of high-quality Monel fasteners. Monel fasteners are nickel-copper alloys renowned for their exceptional corrosion resistance, high strength, and outstanding durability.
Primarily composed of copper (28–34%) and nickel (minimum 63%), with trace amounts of elements such as iron (up to 2.5%), manganese (up to 2%), and minor levels of silicon, sulfur, and carbon, Monel Alloy 400 demonstrates excellent corrosion resistance, weldability, and moderate to high strength. This makes it highly suitable for demanding applications in the oil, gas, maritime, and chemical processing industries.
Monel screws, bolts, and nuts from Steel Craft Alloys boast remarkable properties, including strong corrosion resistance and superior strength. Made from the anti-corrosive Monel alloy, these fasteners ensure long-lasting performance and durability even in the most challenging environments.
| Standard | ASTM B166 / ASME SB166 |
|---|---|
| Bolt / Screw Size | M3 – M56 | 3/6″ to 2″ | Custom Sizes |
| Nuts Size | M3 – M56 | 3/6″ to 2″ | Custom Sizes |
| Washers Size | M3 – M56 | 3/6″ to 2″ | Custom Sizes |
| Machine Screws Size | M1.6 – M12 |
| Self Tapping Screw Size | No.2 – No. 14 |
| Length | 3 mm to 200 mm |
| Threads | UNF, BSW, BSF, METRIC, UNC, or as required |
| Fasteners |
|
| Form | Hex, Threading, Square, Round as per Gauge Etc. |
| Raw materials Source | JSPL, Mukund Steel, Tata Steel, Dhamm Steel, Usha Martin,etc. |
| Threads Configuration | ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads |
| Certification | Dual Certified As per ASTM & ASME Codes |
| Dimensions | DIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3 |
| Threads | Unless otherwise specified, the threads shall be rolled or cut and tapped horizontally or vertically |
| Test Certificate | as per EN 10204 / 3.1 Manufacturer Test Certificate |
| Additional Certifications | PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified |
| Production Process | M24-M100: hot forging , M2-M24: Cold Froging, for custom-made connecting element machining and CNC |
| Types | Bolts, Nuts, Stud Bolts, Washers, Threaded Rod, Anchor Fasteners, Eye Bolt, Stud, Cotter Pin, Socket Screw, Fine Fasteners & Spares, Foundation Fasteners, Hexagon Castle Nuts, Hexagon Domed Cap Bolts, Hexagon Thin Nuts etc. |
