We conduct thorough inspections at every stage of the production process.

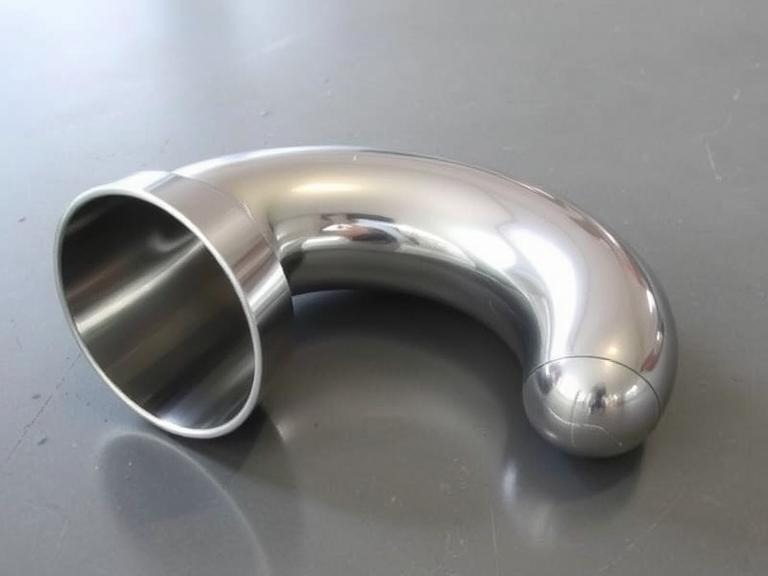

Steel Craft Alloys is a prominent producer, supplier, stockist, and exporter of high-class quality Pipe Bends, which cover a broad range of industrial applications. Our Pipe Bends are crafted with precision and strength to deliver unobstructed flow and consistent performance in different piping systems. Produced from superior raw materials and the latest methods of production, our products conform to international standards of quality and meet the expectations of clients from various industries such as oil & gas, petrochemicals, power plants, and construction. Backed with a steadfast commitment to excellence, Steel Craft Alloys delivers products in time and satisfies customers with constant product performance and excellent service.
Products are packaged to ensure that there is no damage during transit. In case of exports, standard export packaging is done in wooden cases. All flanges are marked with Grade, Lot No, Size, Degree and our trade mark. On special requests we can also, make custom marking on our products.
At Steel Craft Alloys , all fittings and flanges are subject to strict inspection at each stage of the production process, from starting material purchasing to product dispatch. They are visually examined for conformity to ASTM, ASME, MSS, DIN, EN, and JIS codes and standards. Upon request, official certified Inspection Agencies can be called in to witness the material reports, dimensions and quality conformity of products.
Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report
| Outside Diameter: | Seamless Pipe Bends (1/2″ – 24″), Welded / Fabricated Pipe Bends (2″ – 36″) |
|---|---|
| Wall Thickness: | 3mm-40mm / SCH55, SCH10, SCH20, SCH30, SCH40, STD, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Bending Radius: | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Product Angle: | 0° – 180° |
| Production Grades: | Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel |
| Value Added Services: | Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering |
| ASME: | ANSI B16.9, ANSI B16.28, MSS-SP-43 |
|---|---|
| DIN: | DIN2605, DIN2615, DIN2616, DIN2617, DIN28011 |
| EN: | EN10253-1, EN10253-2 |
| ASTM A403 – ASME SA403 | Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings |
|---|---|
| ASME B16.9 | Factory-Made Wrought Fittings Buttwelding |
| ASME B16.25 | Buttwelding Ends ASME B16.28 – Wrought Steel Short Radius Elbows and Buttwelding Returns |
| MSS SP-43 | Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications |
| Stainless Steel Pipe Bends | ASTM A403 WP Gr. 202, 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L |
|---|---|
| Carbon Steel Pipe Bends | ASTM A 234 WPB, WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70. |
| Low Temperature Carbon Steel Pipe Bends | ASTM A420 WPL3, A420 WPL6 |
| Alloy Steel Pipe Bends | ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91 |
| Duplex Steel Pipe Bends | ASTM A 815, ASME SA 815 UNS NO S31803, S32205. Werkstoff No. 1.4462 |
| Nickel Alloy Pipe Bends | ASTM / ASME SB 336 UNS 2200 (NICKEL 200), UNS 2201 (NICKEL 201), UNS 4400 (MONEL 400), UNS 8020 (ALLOY 20 / 20 CB 3), UNS 8825 (INCONEL 825), UNS 6600 (INCONEL 600), UNS 6601 (INCONEL 601), UNS 6625 (INCONEL 625), UNS 10276 (HASTELLOY C 276) |
